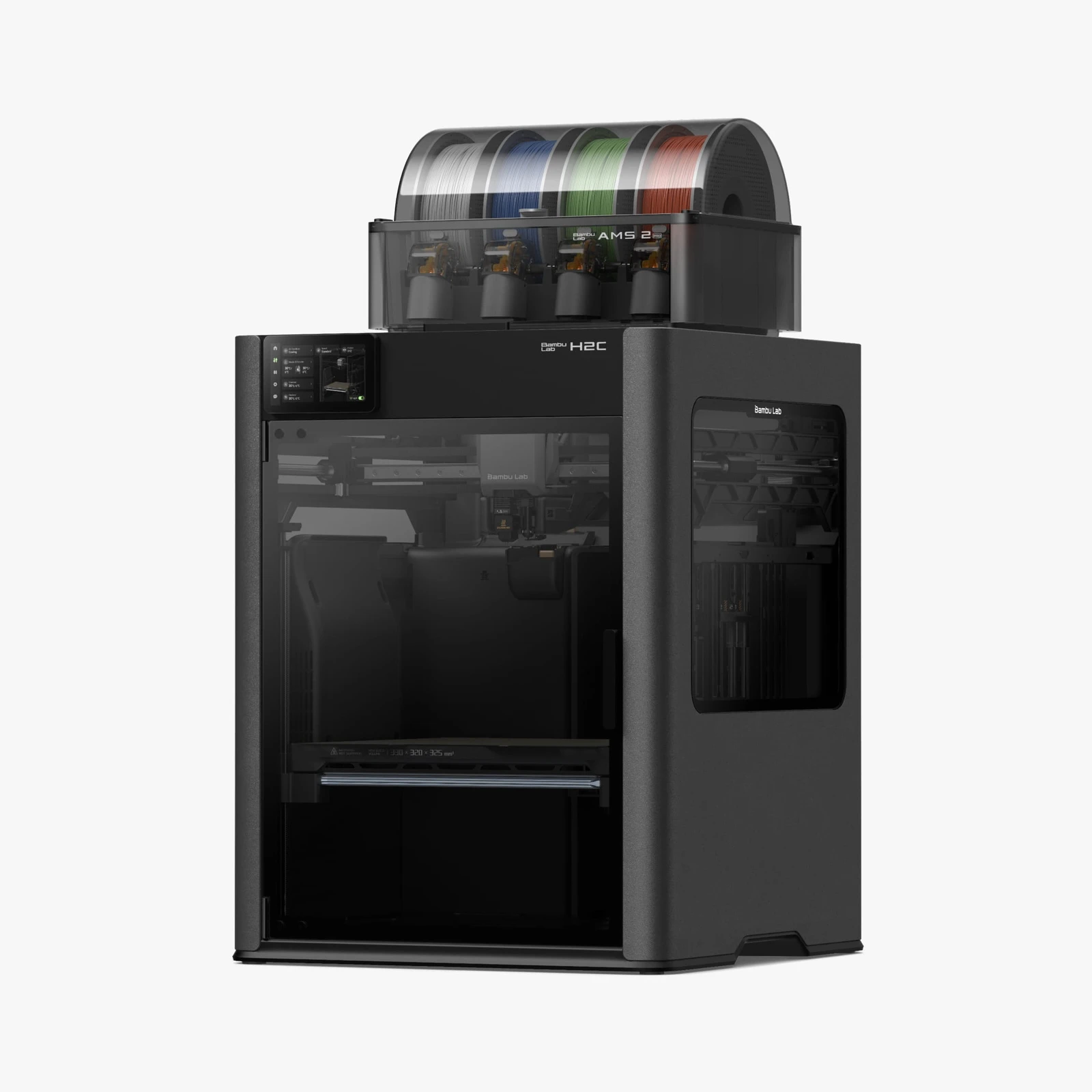

Bambu Lab H2C
Price range: $3,289.00 through $4,789.00
Brand: Bambu LabDual-nozzle Bambu Lab H2C with seven swappable hotends and the AMS 2 Pro, as AMS Combo or 10W or 40W Laser Full Combo, from an authorized Bambu Lab reseller.
- In stock
- Priced in CAD
- Purchase orders and quotes for schools
- Authorized Canadian Bambu Lab reseller
About the Bambu Lab H2C
Bambu Lab describes the H2C as a purge-saving multi-material and multi-colour 3D printer with 7 smart-swapping hotends, up to 24-filament support, and smart features for fast, precise performance. It is a dual-nozzle, fully enclosed printer with active chamber heating, sold as an AMS Combo (the AMS 2 Pro is in the box) or as a Laser Full Combo with a 10W or 40W laser module and a cutting module. Bambu Lab’s Canadian store lists no H2C without an AMS 2 Pro.
Key Features
- Hotend change multi-material printing with the Vortek hotend-swap system
- Minimal purge waste multi-colour printing (Bambu Lab’s purge figures are calculated results from Bambu Studio)
- Precise and fast inductive nozzle heating
- Closed-loop servo extruder
- Full filament path AI error detection
- 350 °C nozzles and 65 °C active heated chamber
- Optional 10W/40W laser and cutting module (Laser Full Combo), or a laser upgrade kit for the non-laser H2C
- 330 x 320 x 325 mm build volume (Bambu Lab’s total for two nozzles)
- Up to 24 materials in a single print with 4 AMS units and 8 AMS HT units connected
- Fully enclosed aluminum and steel chassis; fire-retardant chamber in UL94 V-0 grade materials
See it in action
Connecting AMS units: one or two AMS units (AMS, AMS 2 Pro or AMS HT) connect with nothing extra. For three or more, Bambu Lab specifies the 4-in-1 PTFE Adapter II (SA014), one of which is in the H2C box.
Cybersecurity compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020.
What’s in the box
Pick the configuration from the selector above. Item counts are from Bambu Lab’s “What’s in the box” list for the H2C.
| Item | AMS Combo | Laser Full Combo, 10W Laser or 40W Laser | Vortek Utility Bundle |
|---|---|---|---|
| Bambu Lab H2C | ✓ | – | – |
| Build Plate | ✓ | ✓ | – |
| Spool Holder | ✓ | ✓ | – |
| 0.4 mm Induction Hotend x 4 (one pre-installed on the right toolhead, three in the accessory box) | ✓ | – | – |
| 0.2 mm Induction Hotend x 1 | ✓ | ✓ | – |
| 0.6 mm Induction Hotend x 1 | ✓ | ✓ | – |
| 0.4 mm Hardened Steel Hotend x 2 (standard left hotends; one pre-installed, one in the accessory box) | ✓ | – | – |
| 4-in-1 PTFE Adapter II x 1 | ✓ | ✓ | – |
| Accessory Box | ✓ | ✓ | – |
| AMS 2 Pro x 1 | ✓ | ✓ | – |
| Bambu Lab H2C Laser Edition | – | ✓ | – |
| 0.4 mm Induction Hotend x 4 | – | ✓ | – |
| 0.4 mm Hardened Steel Hotend x 2 | – | ✓ | – |
| 10W Laser Module or 40W Laser Module, depending on the option chosen | – | ✓ | – |
| Cutting Module (with pen holder) | – | ✓ | – |
| Laser Platform | – | ✓ | – |
| Cutting Platform | – | ✓ | – |
| Emergency Stop Button | – | ✓ | – |
| Contents to be confirmed. This bundle is no longer on Bambu Lab’s Canadian store; its contents could not be confirmed from Bambu Lab. | – | – | ✓ |
- AMS Combo: Bambu Lab: “The H2C AMS Combo/Laser Full Combo includes 8 hotends and 1 AMS 2 Pro.”
- Laser Full Combo, 10W Laser or 40W Laser: Bambu Lab ships each Laser Full Combo as two packages (the printer and the laser module).
Specifications
| Build volume, total for two nozzles | 330 x 320 x 325 mm (12.99 x 12.60 x 12.80 in) |
| Build volume, dual-nozzle printing | 300 x 320 x 325 mm (11.81 x 12.60 x 12.80 in) |
| Build volume, single nozzle | Left: 325 x 320 x 320 mm (12.80 x 12.60 x 12.60 in); right: 305 x 320 x 325 mm (12.01 x 12.60 x 12.80 in) |
| Max toolhead speed and acceleration | 1,000 mm/s (39.4 in/s); 20,000 mm/s² |
| Max nozzle temperature | 350 °C (662 °F) |
| Max heatbed temperature | 120 °C (248 °F) |
| Chamber | Active chamber heating, max 65 °C (149 °F) |
| Air filtration | G3 pre-filter, H12 HEPA filter, granulated coconut shell activated carbon filter |
| Supported nozzle diameters | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm; hardened steel |
| Supported filament | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; carbon or glass fibre reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS |
| Filament diameter | 1.75 mm |
| Printer size | 492 x 514 x 626 mm (19.4 x 20.2 x 24.6 in); Bambu Lab recommends 700 x 700 x 1,100 mm (27.6 x 27.6 x 43.3 in) of space |
| Net weight | 32.5 kg (71.7 lb) |
| Shipping weight | AMS Combo 44.7 kg (98.5 lb); Laser Full Combo 10W 49 kg (108.0 lb); Laser Full Combo 40W 49.5 kg (109.1 lb) |
| Power | 100 to 120 VAC, 50/60 Hz; max 1,250 W at 110 V; typical 200 W at 110 V (single-nozzle PLA printing) |
| Working temperature | 10 to 30 °C (50 to 86 °F) |
| Touchscreen and storage | 5-inch 720 x 1280 touchscreen; 8 GB eMMC and USB port |
| Cameras | Live view 1920 x 1080; nozzle camera 1920 x 1080; toolhead camera 1600 x 1200; BirdsEye camera 3264 x 2448 on the Laser Edition |
| Laser module (Laser Full Combo) | Semiconductor laser, 455 nm ± 5 nm blue engraving laser and 850 nm ± 5 nm infrared height-measuring laser; 10 W ± 1 W or 40 W ± 2 W |
| Max engraving speed | 10W: 400 mm/s; 40W: 1,000 mm/s |
| Max cutting thickness (basswood plywood) | 10W: 5 mm (0.2 in); 40W: 15 mm (0.6 in) |
| Laser safety class | Laser module: Class 4; overall: Class 1 (see Laser safety below) |
Figures are Bambu Lab’s published specifications for the Canadian (100 to 120 V) units; inch, pound and Fahrenheit values in brackets are our conversions.
Laser safety (Laser Full Combo)
The laser module is a Class 4 laser product, and “when the printer’s protection is complete and properly working, the printer and laser module work as a class 1 laser product”, says Bambu Lab. Bambu Lab’s laser safety document says: “This device is not recommended for operation by minors. Please place the device in a location inaccessible to them to prevent accidents.” It also says “When the laser module is working, ensure the area near the device is free from bystanders, children, and pets”, “The laser module stops working if the front door, top glass cover, or safety window is opened” and “Always ensure a person is present to supervise the laser module in operation to promptly address any fire hazard.” Bambu Lab asks that the smoke exhaust system is correctly installed and that materials that could release harmful gases, such as PVC, are not laser engraved or cut.
Meet Vortek on the H2C
Bambu Lab introduces Vortek, the swappable hotend system on the H2C.
- Six swappable induction hotends plus a standard left hotend
- Up to 24 materials in one print with AMS units, says Bambu Lab
- Less purge waste on colour changes, says Bambu Lab

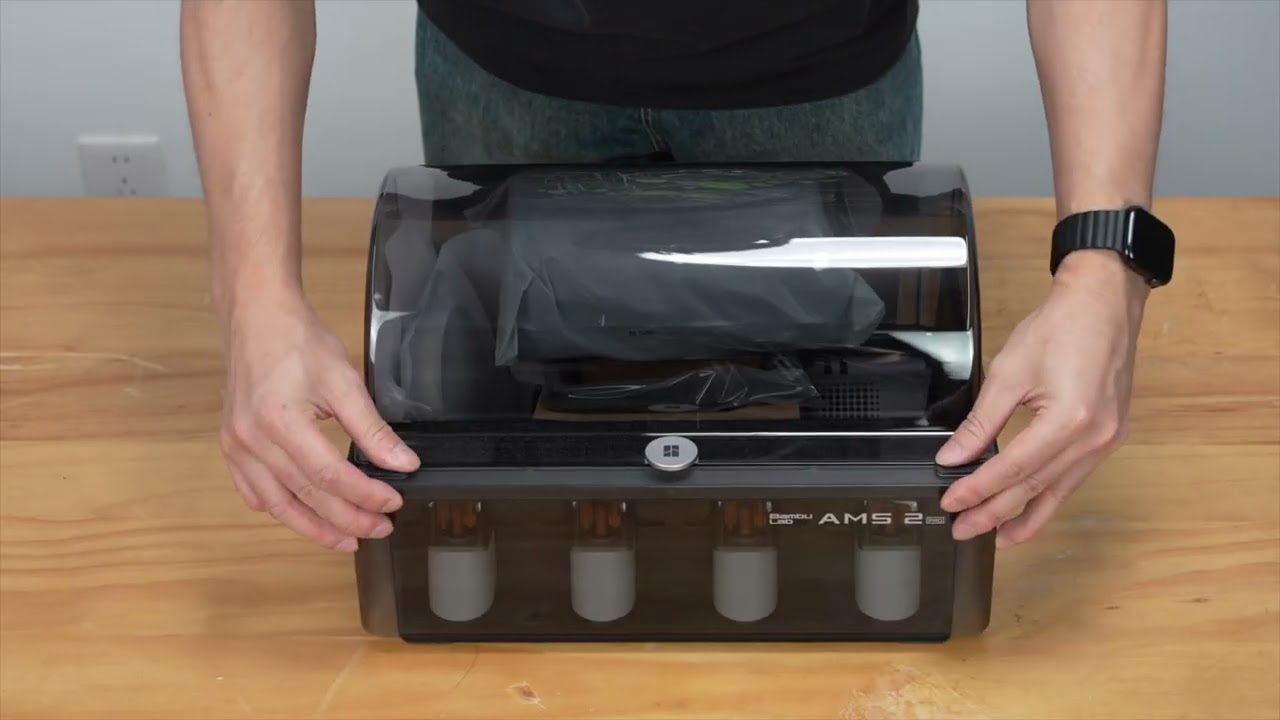

Video by Bambu Lab (2:52). Plays here, nothing loads until you press play.
Buying from iDesign 365
| Software | Bambu Studio for Windows and macOS, and the Bambu Handy phone app |
|---|---|
| Warranty | 2 years from Bambu Lab in Canada, with our receipt as an authorized reseller; its terms are written for individual consumers, so schools and businesses, ask us |
| Returns | New, unopened items within 30 days of shipping, refund less a 20% restocking fee |
| Availability | In stock |
Bambu Lab questions
What is Vortek?
Vortek is Bambu Lab’s hotend-swap system on the H2C: the right toolhead swaps between six induction hotends and the left uses a standard hotend, so one print can change materials and colours with less purge waste, says Bambu Lab. The AMS Combo and the Laser Full Combos include 8 hotends and one AMS 2 Pro.
How many AMS units can it run?
Up to 4 AMS or AMS 2 Pro units and 8 AMS HT units, says Bambu Lab, for up to 24 materials in one print. One or two units connect with nothing extra; three or more need the 4-in-1 PTFE Adapter II, one of which comes in the H2C box.
H2S, H2D or H2C: which is better?
They share a 350 °C nozzle, a 120 °C bed, a chamber heated to 65 °C, 1,000 mm/s top speed and HEPA filtration. Pick the H2S for the largest single-nozzle build (340 x 320 x 340 mm) at the lowest H series price. Pick the H2D for two nozzles, so one print can mix two materials, and a 10 W or 40 W laser combo. Pick the H2C for two nozzles plus Bambu Lab’s Vortek system of six swappable induction hotends, which Bambu Lab says cuts the filament wasted on colour changes.
Can a school use the laser combos?
The H2S, H2D and H2C Laser Full Combos add a laser module that Bambu Lab rates Class 4 on its own and Class 1 as a complete system when the printer’s protection is complete and working. Bambu Lab’s laser safety document says the device “is not recommended for operation by minors”, asks for a trained person to supervise the laser at all times, and for the smoke exhaust to be installed. In a school, that means a staff-run lab, not students operating the laser.
What warranty comes with it?
Bambu Lab gives a 2-year warranty on its printers and on the AMS, AMS 2 Pro and AMS HT in Canada. It needs a purchase receipt from Bambu Lab or an authorized reseller, and as an authorized reseller our receipt qualifies. Bambu Lab’s warranty statement is written for individual consumers, so schools and businesses should ask us about coverage before ordering.
Is iDesign 365 an authorized Bambu Lab reseller?
Yes. iDesign 365 is an authorized Canadian Bambu Lab reseller. We sell the H2C, H2D, H2S, P2S and P1S, the AMS, AMS 2 Pro, AMS HT and AMS Hub, and the adapters and buffer that connect them, all priced in Canadian dollars.
Can my school pay by purchase order or get a quote?
Yes. At checkout, choose Purchase Order and reply to our acknowledgement with your PO, or choose Quote and our sales team will send a detailed quote. Prices are in Canadian dollars.
