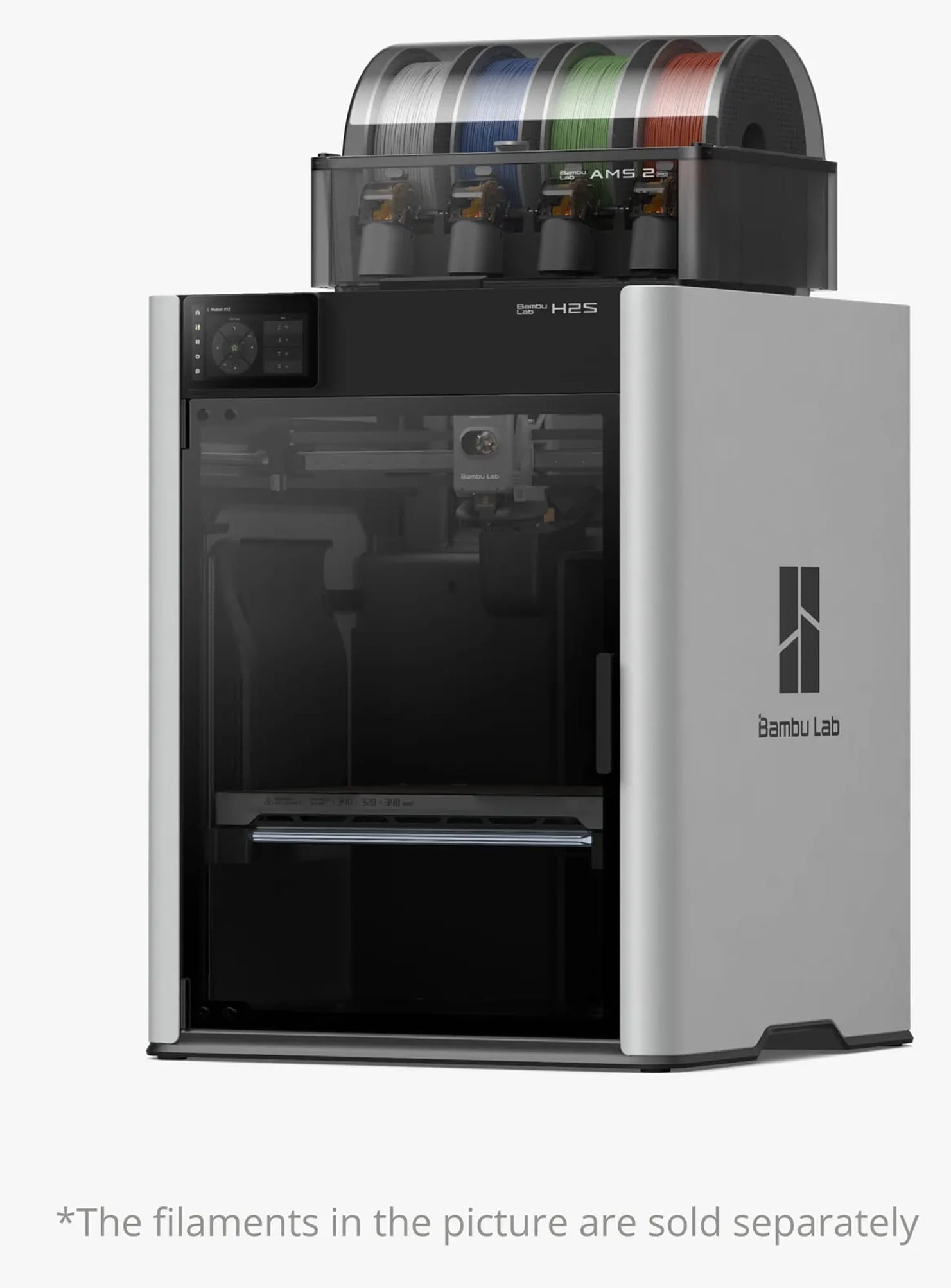

Bambu Lab H2S
Price range: $1,779.00 through $2,699.00
Brand: Bambu LabLarge-format Bambu Lab H2S, 340 x 320 x 340 mm, as Standard, AMS Combo or 10W Laser Full Combo, from an authorized Bambu Lab reseller in Canada.
- In stock
- Priced in CAD
- Purchase orders and quotes for schools
- Authorized Canadian Bambu Lab reseller
About the Bambu Lab H2S
Get a large-format 3D printer with a massive 340 x 320 x 340 mm build volume, 1,000 mm/s high-speed printing, pro-level precision, and vibrant multi-colour printing. The H2S is the single-nozzle member of Bambu Lab’s H2 series and has the largest build volume of the Bambu Lab printers we sell. It is sold as the printer alone (Standard), as an AMS Combo with the AMS 2 Pro, or as a Laser Full Combo with the 10W laser module and cutting module.
Key Features
- 340 x 320 x 340 mm build volume, single nozzle
- 1,000 mm/s toolhead speed and 20,000 mm/s² acceleration
- 350 °C all-metal hotend with hardened steel nozzle, 120 °C heatbed, active chamber heating to 65 °C
- G3 pre-filter, H12 HEPA filter and coconut shell activated carbon filter
- Operates below 50 dB (background noise 40 dB, measured at 1 m)
- Up to 24-colour printing with 4 AMS 2 Pro and 8 AMS HT units connected
- Five flame sensors, front-door and top-cover sensors, and an emergency stop button
- Laser Full Combo with the 10W laser and cutting module; Bambu Lab: the H2S “does not support 40W laser”
- 5-inch touchscreen, 8 GB storage, live view and toolhead cameras
Connecting AMS units: Bambu Lab: “To connect 2 or more AMS 2 Pro units to H2S, a 4-in-1 PTFE Adapter(s) (FAZ013-N) are required.” See our Bambu 4-in-1 PTFE Adapter page. To dry filament in more than one AMS 2 Pro at the same time, each additional unit needs its own Switching Adapter.
Cybersecurity compliant with EU RED Article 3.3(d)(e) and ETSI EN 303 645 V2.1.1:2020.
What’s in the box
Pick the configuration from the selector above. Items are from Bambu Lab’s “What’s in the box” list for the H2S.
| Item | Standard | AMS Combo | Laser Full Combo (10W only) |
|---|---|---|---|
| Bambu Lab H2S | ✓ | ✓ | – |
| Textured PEI Build Plate | ✓ | ✓ | ✓ |
| Spool Holder | ✓ | ✓ | ✓ |
| Accessory Box | ✓ | ✓ | ✓ |
| Safety Key | ✓ | ✓ | ✓ |
| AMS 2 Pro | – | ✓ | ✓ |
| Bambu Lab H2S Laser Edition | – | – | ✓ |
| 10W Laser Module | – | – | ✓ |
| Cutting Module (with pen holder) | – | – | ✓ |
| Laser Platform | – | – | ✓ |
| Cutting Platform | – | – | ✓ |
| Ventilation Pipe | – | – | ✓ |
| Laser and Cutting Materials | – | – | ✓ |
| Emergency Stop Button | – | – | ✓ |
Specifications
| Build volume | 340 x 320 x 340 mm (13.39 x 12.60 x 13.39 in) |
| Max toolhead speed and acceleration | 1,000 mm/s (39.4 in/s); 20,000 mm/s² |
| Max nozzle temperature | 350 °C (662 °F) |
| Max heatbed temperature | 120 °C (248 °F) |
| Chamber | Active chamber heating, max 65 °C (149 °F) |
| Air filtration | G3 pre-filter, H12 HEPA filter, granulated coconut shell activated carbon filter |
| Noise | Below 50 dB (background noise 40 dB; test distance 1 m) |
| Hotend and nozzles | All-metal hotend, hardened steel nozzle; 0.4 mm included; 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm supported; max flow 40 mm³/s (65 mm³/s with the optional high-flow hotend) |
| Supported filament | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; carbon or glass fibre reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS |
| Filament diameter | 1.75 mm |
| Printer size | 492 x 514 x 626 mm (19.4 x 20.2 x 24.6 in); package 580 x 605 x 750 mm (22.8 x 23.8 x 29.5 in) |
| Net weight | 30 kg (66.1 lb); Laser Edition 30.5 kg (67.2 lb) |
| Shipping weight | H2S 39.2 kg (86.4 lb); AMS Combo 42.6 kg (93.9 lb); Laser Full Combo 48 kg (105.8 lb) |
| Power | 100 to 120 VAC, 50/60 Hz; max 1,170 W at 110 V |
| Working temperature | 10 to 30 °C (50 to 86 °F) |
| Touchscreen and storage | 5-inch 720 x 1280 touchscreen; 8 GB eMMC and USB port |
| Cameras | Live view 1920 x 1080; toolhead camera 1600 x 1200; BirdsEye camera 3264 x 2448 on the Laser Edition |
| Laser module (Laser Full Combo) | Semiconductor laser, 455 nm ± 5 nm blue engraving laser and 850 nm ± 5 nm infrared height-measuring laser; 10 W ± 1 W; laser spot 0.03 x 0.14 mm |
| Max engraving speed | 400 mm/s |
| Max laser cutting thickness (basswood plywood) | 5 mm (0.2 in) |
| Engraving area | 310 x 260 mm (12.2 x 10.2 in) |
| Laser safety class | Laser module: Class 4; overall: Class 1 (see Laser safety below) |
| Air pump (Laser Edition) | Built-in; 30 kPa, 30 L/min |
| Cutting module | Cutting area 297.5 x 300 mm (11.7 x 11.8 in); drawing area 300 x 255 mm (11.8 x 10.0 in); 45°, 0.35 mm blade; blade pressure 50 to 600 gf; max cutting thickness 0.5 mm; materials: paper, PVC, vinyl, leather, and more |
| Cutting module pens | Supported pen diameter 10.5 to 12.5 mm (0.41 to 0.49 in) |
Figures are Bambu Lab’s published specifications for the Canadian (100 to 120 V) units; inch, pound and Fahrenheit values in brackets are our conversions.
Laser safety (Laser Full Combo)
The laser module is a Class 4 laser product, and “when the printer’s protection is complete and properly working, the printer and laser module work as a class 1 laser product”, says Bambu Lab. Bambu Lab’s laser safety document says: “This device is not recommended for operation by minors. Please place the device in a location inaccessible to them to prevent accidents.” It also says “When the laser module is working, ensure the area near the device is free from bystanders, children, and pets”, “The laser module stops working if the front door, top glass cover, or safety window is opened” and “Always ensure a person is present to supervise the laser module in operation to promptly address any fire hazard.” Bambu Lab asks that the smoke exhaust system is correctly installed (the Laser Full Combo includes a ventilation pipe) and that materials that could release harmful gases, such as PVC, are not laser engraved or cut.
Meet the Bambu Lab H2S
Bambu Lab’s launch film for the H2S, its large single-nozzle printer.
- 340 x 320 x 340 mm build volume
- Chamber heated to 65 °C
- 10W laser in the Laser Full Combo
Video by Bambu Lab (3:25). Plays here, nothing loads until you press play.
Buying from iDesign 365
| Software | Bambu Studio for Windows and macOS, and the Bambu Handy phone app |
|---|---|
| Warranty | 2 years from Bambu Lab in Canada, with our receipt as an authorized reseller; its terms are written for individual consumers, so schools and businesses, ask us |
| Returns | New, unopened items within 30 days of shipping, refund less a 20% restocking fee |
| Availability | In stock |
Bambu Lab questions
How big can it print?
Up to 340 x 320 x 340 mm (13.39 x 12.60 x 13.39 in) in one piece, the largest build volume of the Bambu Lab printers we sell.
Does it take the 40W laser?
No. Bambu Lab says the H2S “does not support 40W laser”. Its Laser Full Combo uses the 10W laser module.
How loud is it?
Bambu Lab says the H2S operates below 50 dB, measured 1 m away with 40 dB of background noise.
H2S, H2D or H2C: which is better?
They share a 350 °C nozzle, a 120 °C bed, a chamber heated to 65 °C, 1,000 mm/s top speed and HEPA filtration. Pick the H2S for the largest single-nozzle build (340 x 320 x 340 mm) at the lowest H series price. Pick the H2D for two nozzles, so one print can mix two materials, and a 10 W or 40 W laser combo. Pick the H2C for two nozzles plus Bambu Lab’s Vortek system of six swappable induction hotends, which Bambu Lab says cuts the filament wasted on colour changes.
Can a school use the laser combos?
The H2S, H2D and H2C Laser Full Combos add a laser module that Bambu Lab rates Class 4 on its own and Class 1 as a complete system when the printer’s protection is complete and working. Bambu Lab’s laser safety document says the device “is not recommended for operation by minors”, asks for a trained person to supervise the laser at all times, and for the smoke exhaust to be installed. In a school, that means a staff-run lab, not students operating the laser.
What warranty comes with it?
Bambu Lab gives a 2-year warranty on its printers and on the AMS, AMS 2 Pro and AMS HT in Canada. It needs a purchase receipt from Bambu Lab or an authorized reseller, and as an authorized reseller our receipt qualifies. Bambu Lab’s warranty statement is written for individual consumers, so schools and businesses should ask us about coverage before ordering.
Can my school pay by purchase order or get a quote?
Yes. At checkout, choose Purchase Order and reply to our acknowledgement with your PO, or choose Quote and our sales team will send a detailed quote. Prices are in Canadian dollars.
