VEX CTE 6-Axis Robotic Arm

Works with CTE products and accessories. Code with Blocks, Python, and C++ (Software available at no cost)

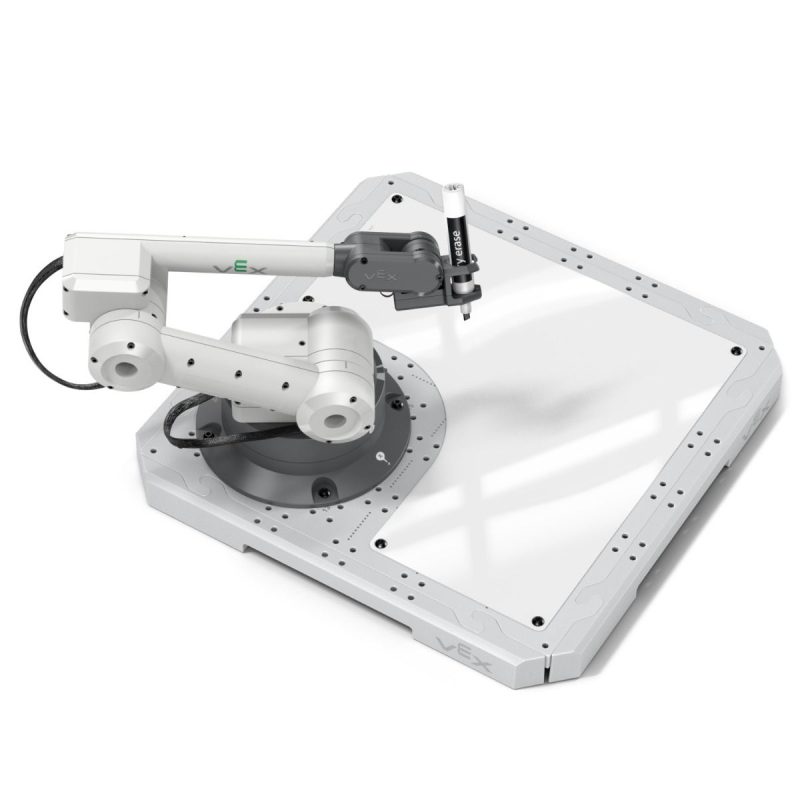

The VEX CTE 6-Axis Robot Arm both visually and functionally replicates a real industrial robotic arm. The VEX CTE 6-Axis Robotic Arm Kit is
designed for Career and Technical Education, giving students hands-on experience programming a realistic robotic arm. Teach industrial robotics with real-life manufacturing concepts through engaging activities and coding challenges

Learn to set up and control the arm using a Teach Pendant, then code it to perform precise movements and tasks. Gain practical skills in robotics and automation through hands-on activities and coding challenges.

The arm’s six different rotational joints allow students to freely manipulate the arm’s end effector tools.

Arm maximum reach: 335 mm
Platform size: 638 x 333 mm

Contains one robotic arm, power adapter and cable, field tile, and other appropriate pieces to get started with the VEX CTE 6-Axis Robotic Arm.

IMPORTANT Note: This item does not include any Workcell components, brain, or pneumatics. Requires a Windows, Mac, or Chromebook computer (not included).

What’s included:

• (1) 6-Axis Robotic Arm
• (1) Magnetic Pickup Tool
• (1) Pen Holder Tool
• (1) CTE Tile
• (4) CTE Tile Frames
• (1) Signal Tower & Base
• (10) Disks
• (9) Cubes
• (2) Pallets
• (1) V5 Smart Cable 600mm
• (1) Power Adapter
• (1) Power Supply Cable
• (1) USB Cable (A-C) 1m
• (2) Dry Erase Markers
• (1) Dry-Erase Surface
• (1) T15 Screw driver
• (14) Nut, Low Profile – 8-32
• (10) #8-32 x .50″ Screws
• (5) #8-32 x .75″ Screws

Introduction to the 6-Axis Arm Curriculum Available from VEX STEM Labs:

• Introduction to Robotic Arms
• Using the Teach Pendant
• Coding Movements
• Motion Planning
• Absolute vs. Relative Movements
• Transporting and Palletizing Objects
• Stacking Objects
• Pick & Place
• Capstone: Engineering Design Process
